3117 - piping May 2007

Post by John Ashworth »

Photo and text by Nathan Berelowitz 19th May 2007
Attachments

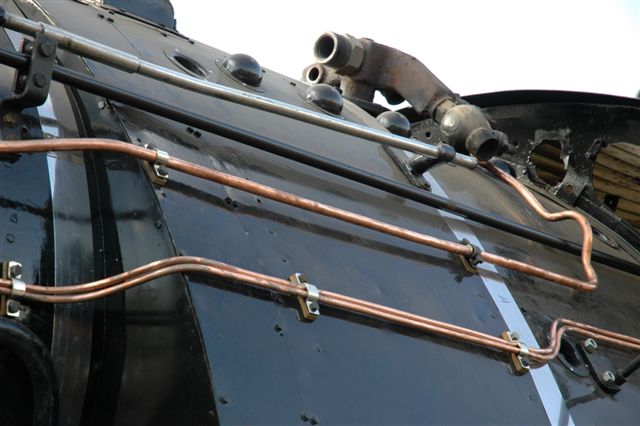

As good as any coppersmiths work, the beautifull lines of annealed piping lie freshly placed on the boiler of 3117. You an clearly see how bakelite spacers have been placed behind the pipe clamps to prevent the accumulation of soot which would eventually lead to rust damage. It also makes pipe polishing an easier task.
As good as any coppersmiths work, the beautifull lines of annealed piping lie freshly placed on the boiler of 3117. You an clearly see how bakelite spacers have been placed behind the pipe clamps to prevent the accumulation of soot which would eventually lead to rust damage. It also makes pipe polishing an easier task.
15F3117 PIPING 19MAY2007 014.jpg (54.47 KiB) Viewed 893 times
