3117 - trial hydraulic December 2006

Post by John Ashworth »

Photos with Nathan Berelowitz's camera, December 2006 - not sure who took the second one!

Note that the boiler is tested to beyond the safe working pressure, well beyond the red mark.
Attachments

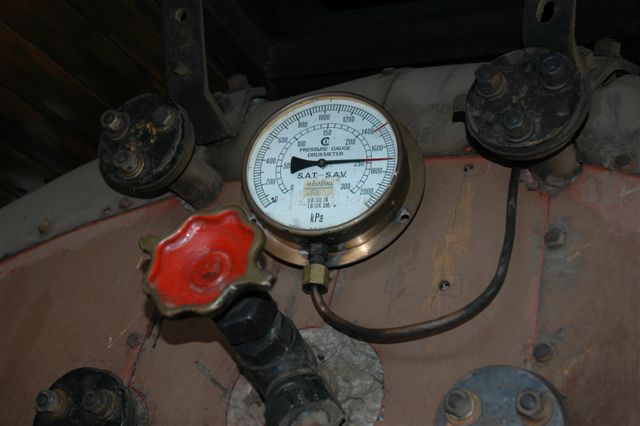

Our first attempt at hydraulicing to see if the boiler was good, before further restoration takes place. The results were successful. Note the raw lagging and the new insulating blanket sticking out.
Our first attempt at hydraulicing to see if the boiler was good, before further restoration takes place. The results were successful. Note the raw lagging and the new insulating blanket sticking out.
15F 3117 trial hydraulic and members 014.jpg (42.92 KiB) Viewed 959 times
Some of the FOTR weekenders at work, just having celebrated the first trial hydraulic testing of 3117 boiler. L to r: Steve S, Les L, Miemie, Nathan, John D, Gabor.
Some of the FOTR weekenders at work, just having celebrated the first trial hydraulic testing of 3117 boiler. L to r: Steve S, Les L, Miemie, Nathan, John D, Gabor.
15F 3117 trial hydraulic and members 019.jpg (63.97 KiB) Viewed 960 times
