3117 - disappearing pipe

Post by John Ashworth »

Frank feeds a new pipe into the tender of 3117 to replace the old one, which was rusted through

Photos by John Ashworth 26th April 2008
Attachments
Now you see it...
Now you see it...
...now you don't
...now you don't
View from the top
View from the top
Top
User avatar
John Ashworth
Site Admin
Posts: 23606
Joined: 24 Jan 2007, 14:38
Location: Nairobi, Kenya
Contact:
Contact John Ashworth

Re: 3117 - disappearing pipe

Post by John Ashworth »

More photos of the same work, a little later in the day

Photos and captions by Nathan Berelowitz 26th April 2008
Attachments
The renewed overflow pipe inside the tender of 3117.
The renewed overflow pipe inside the tender of 3117.
capital park loco studies april2008 002.jpg (25.97 KiB) Viewed 1256 times

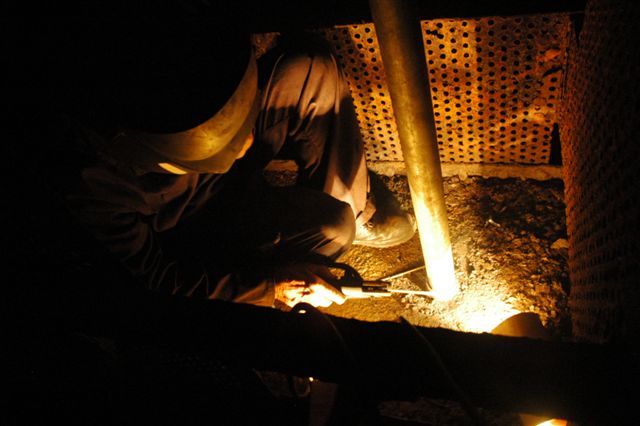

Deep in the bowels of the tender of 15F 3117, John Dadford is putting the final touches to the welds on the replacement piping for the vacuum pipe channel. The 15F has the vacuum reservoir mounted on the flat portion of the tender rear and the pipe work is fed through the water space to below the tender where it then carries on its journey on the surface. The new galvanised pipe is the protective housing for the vacuum pipe. Note the perforated baffle plates to break the movement of the water whilst the locomotive is in operation.
Deep in the bowels of the tender of 15F 3117, John Dadford is putting the final touches to the welds on the replacement piping for the vacuum pipe channel. The 15F has the vacuum reservoir mounted on the flat portion of the tender rear and the pipe work is fed through the water space to below the tender where it then carries on its journey on the surface. The new galvanised pipe is the protective housing for the vacuum pipe. Note the perforated baffle plates to break the movement of the water whilst the locomotive is in operation.
capital park loco studies april2008 007.jpg (47.29 KiB) Viewed 1254 times
The completed welding inside the tender of 15F 3117. The rotten pipework for the water overflow and vacuum pipe housing had to be replaced. John Dadford, as ever, with his perfect welds.
The completed welding inside the tender of 15F 3117. The rotten pipework for the water overflow and vacuum pipe housing had to be replaced. John Dadford, as ever, with his perfect welds.
capital park loco studies april2008 010.jpg (40.65 KiB) Viewed 1254 times

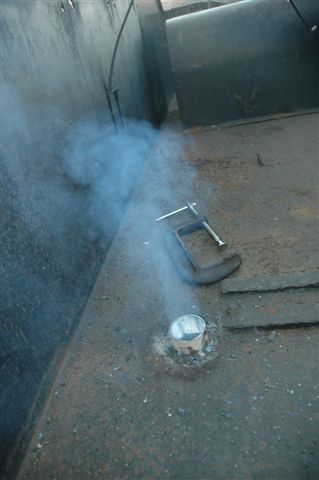

On top of the 15F tender, the view here is where the vacuum reservoir will be mounted. Welding fumes are seen emiting from the newly fitted galvanised piping, which runs through the water space of the tender. Inside this pipe will be the smaller vacuum pipe from the reservoir which will then surface below the tender frame.
On top of the 15F tender, the view here is where the vacuum reservoir will be mounted. Welding fumes are seen emiting from the newly fitted galvanised piping, which runs through the water space of the tender. Inside this pipe will be the smaller vacuum pipe from the reservoir which will then surface below the tender frame.
capital park loco studies april2008 012.jpg (30.47 KiB) Viewed 1253 times
Top
User avatar
John Ashworth
Site Admin
Posts: 23606
Joined: 24 Jan 2007, 14:38
Location: Nairobi, Kenya
Contact:
Contact John Ashworth

Re: 3117 - disappearing pipe

Post by John Ashworth »

A photo of Frank with the old rusted pipe

Photo and caption by Chris Janisch 26th April 2008
Attachments
Lookalike competition - Frank wif busted pipe from 3117 tender!
Lookalike competition - Frank wif busted pipe from 3117 tender!
