3117 - tender restoration 2007

Post by John Ashworth »

Photos and captions by Nathan Berelowitz, 2007
Attachments

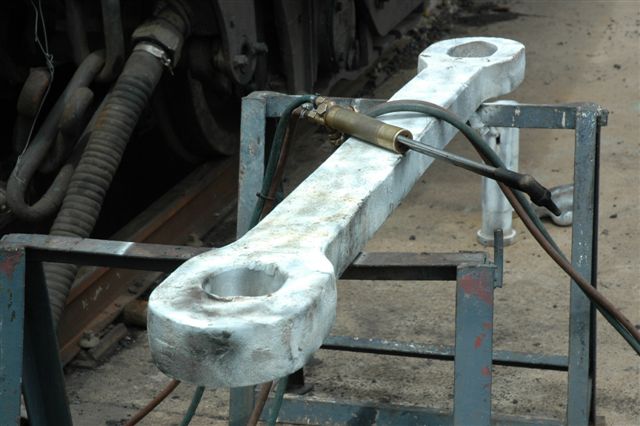

Drawbar out for non destructive testing by Brian Dadford.
Drawbar out for non destructive testing by Brian Dadford.
15F 3117 tender restouration 122006 001.jpg (55.72 KiB) Viewed 922 times

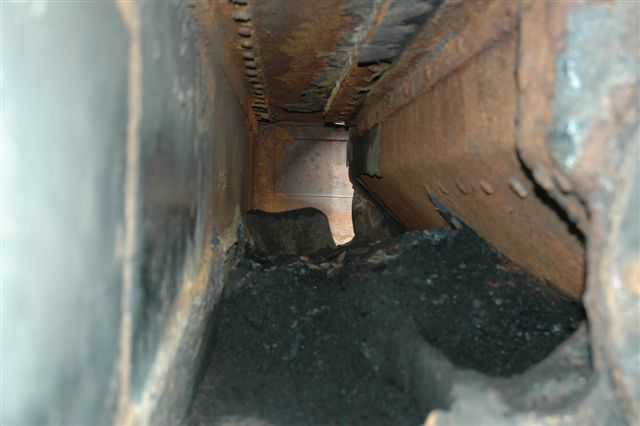

The side tunnel area of the mechanical stoker drive shaft, seen filled with coal. Upon clearing this out it revealed two large holes. This resulted in new metal panels being made to close up. <br /><br />Jan 2007
The side tunnel area of the mechanical stoker drive shaft, seen filled with coal. Upon clearing this out it revealed two large holes. This resulted in new metal panels being made to close up.

Jan 2007
15F 3117 tender restouration 122006 004.jpg (41.48 KiB) Viewed 921 times

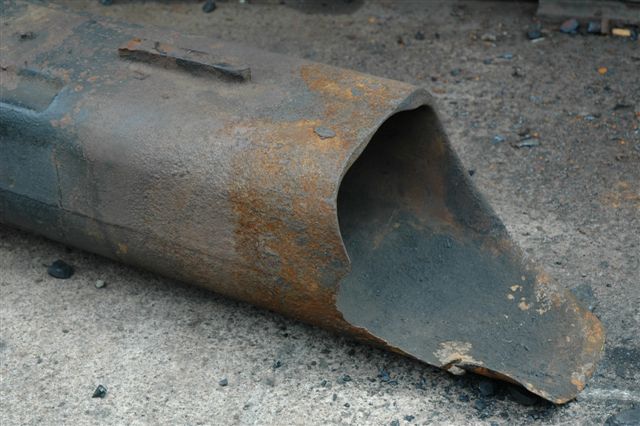

One section of the stoker worm drive shaft showing the wear on it. This was replaced by a new one. <br /><br />Jan 2007
One section of the stoker worm drive shaft showing the wear on it. This was replaced by a new one.

Jan 2007
15F 3117 tender restouration 122006 012.jpg (62.71 KiB) Viewed 920 times

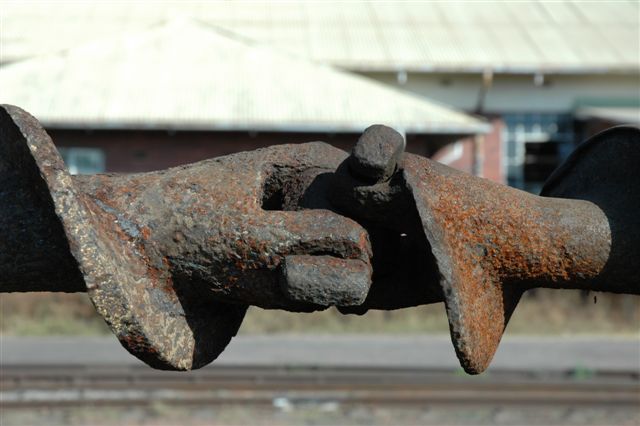

The stoker worm drive universal joint showing a very rusty securing bolt that needed replacement. <br /><br />May 2007.
The stoker worm drive universal joint showing a very rusty securing bolt that needed replacement.

May 2007.
15F3117 PIPING 19MAY2007 001.jpg (49.57 KiB) Viewed 920 times

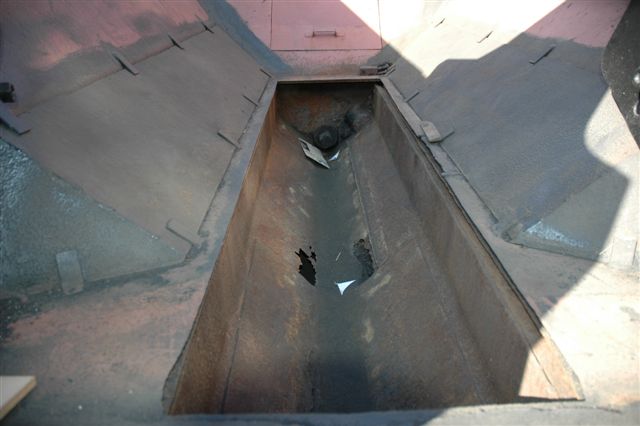

Once the coal had been cleaned out of the tunnel area under the bunker, some holes were revealed, and had to be patched up. A new plate was shaped and fitted. Note the modifications to the tender to enable maximum usage of coal. The angled plates have been fitted to guide more of the dead area coal into the trough.<br /><br />May 2007
Once the coal had been cleaned out of the tunnel area under the bunker, some holes were revealed, and had to be patched up. A new plate was shaped and fitted. Note the modifications to the tender to enable maximum usage of coal. The angled plates have been fitted to guide more of the dead area coal into the trough.

May 2007
15F3117 PIPING 19MAY2007 003.jpg (43.3 KiB) Viewed 918 times
