3117 - firebox door

Post by John Ashworth »

Photos by Nathan Berelowitz 8th August 2008
Attachments
The contrast of light and dark, as the acetylene cutter enlarges a hole in the firebox door frame
The contrast of light and dark, as the acetylene cutter enlarges a hole in the firebox door frame
capital park 15fand site moveaug08 013.jpg (52.5 KiB) Viewed 932 times
The firebox door frame required a number of welds to build up the fastening studs, after years of use and corrosion. Oom John at work
The firebox door frame required a number of welds to build up the fastening studs, after years of use and corrosion. Oom John at work
capital park 15fand site moveaug08 008.jpg (55.87 KiB) Viewed 932 times
First fitting of the door frame on the 15F 3117 firebox. It needed some work still to get the bolt holes to line up properly, but another step nearer to completion
First fitting of the door frame on the 15F 3117 firebox. It needed some work still to get the bolt holes to line up properly, but another step nearer to completion
capital park 15fand site moveaug08 010.jpg (65.66 KiB) Viewed 930 times
Cleaned and painted and waiting to be fitted, the firebox door frame of 3117 lies on the cab floor prior to fitting
Cleaned and painted and waiting to be fitted, the firebox door frame of 3117 lies on the cab floor prior to fitting
capital park 15fand site moveaug08 007.jpg (54 KiB) Viewed 931 times

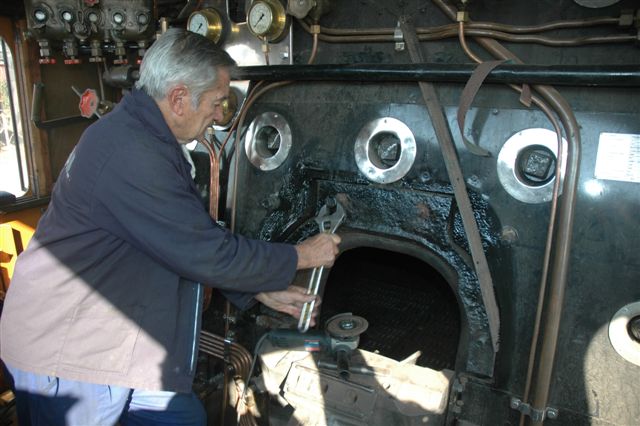

Oom John is cleaning the threads on the studs, prior to the firebox door frame being refitted to 15F 3117. As far as restoration goes, there is at present almost no work left on her to do. First trial light upwill be at end August.
Oom John is cleaning the threads on the studs, prior to the firebox door frame being refitted to 15F 3117. As far as restoration goes, there is at present almost no work left on her to do. First trial light upwill be at end August.
capital park 15fand site moveaug08 006.jpg (61.12 KiB) Viewed 934 times
